Beskrivelse

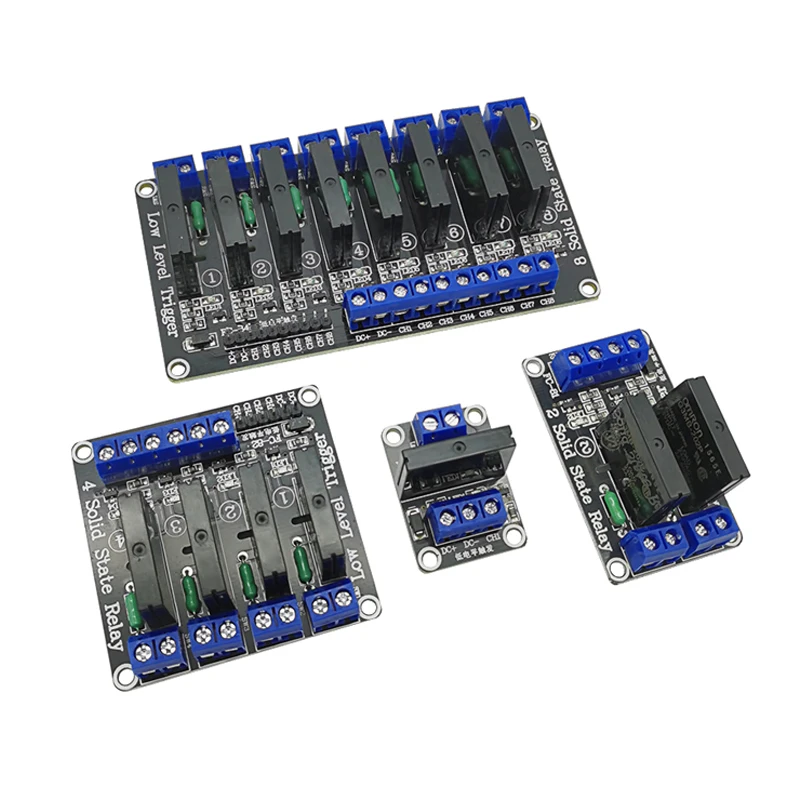

Solid State Relæ 5V high 240V 2A
- Input Power Supply: 5V DC (160mA)
- Input Control Signal Voltage:
- High State (Relay ON): 3.3-5V
- Output Specifications:
- Maximum Load: 240V
- Maximum Current: 2A
- Output with Resistive Fuse: 240V, 2A
Module Interface:
- DC+: Positive power supply (connected to the relay voltage power supply)
- DC-: Connect to power negative (ground)
- CH: Relay module signal triggering end (high-level trigger effective)
Ensure that the control signal falls within the specified range to effectively trigger the relay. Use the DC+ and DC- connections for the power supply, and apply the control signal to the CH terminal for proper operation.
