LM393 in sensor modul 4-pin Photosensitive Sensor

kr.35.00 inkl. moms

Ikke på lager

Send en Email når varen er på lager

Varenummer (SKU): 14 Kategori:

Beskrivelse

LM393 Optical Sensitive Resistance Light Detection Photosensitive Sensor 4-pin

LM393 Optical Sensitive Resistance Light Detection Photosensitive Sensor 4-pin

Description:
1 Photosensitive resistance module\’s most sensitive to ambient light, commonly used to detect environment around the brightness of the light, or MCU trigger relay module, etc.;
2 Module in the environment light intensity than set threshold, output high level DO end, when the environment light intensity more than set threshold, the DO output low level;
3 The DO output can be directly connected to microcontroller, through single chip microcomputer to detect the high and low level, thus to detect the environment light intensity change;
4 The DO output can be directly driven our relay module, which can form a light-operated switch.

Specification:
1 Using photosensitive resistance sensor sensitive type;
2 Working Voltage:3.5V-5V;
3 Output form:Digital Switch show (0 and 1);
4 Fixed Bolt Hole, easy installation;

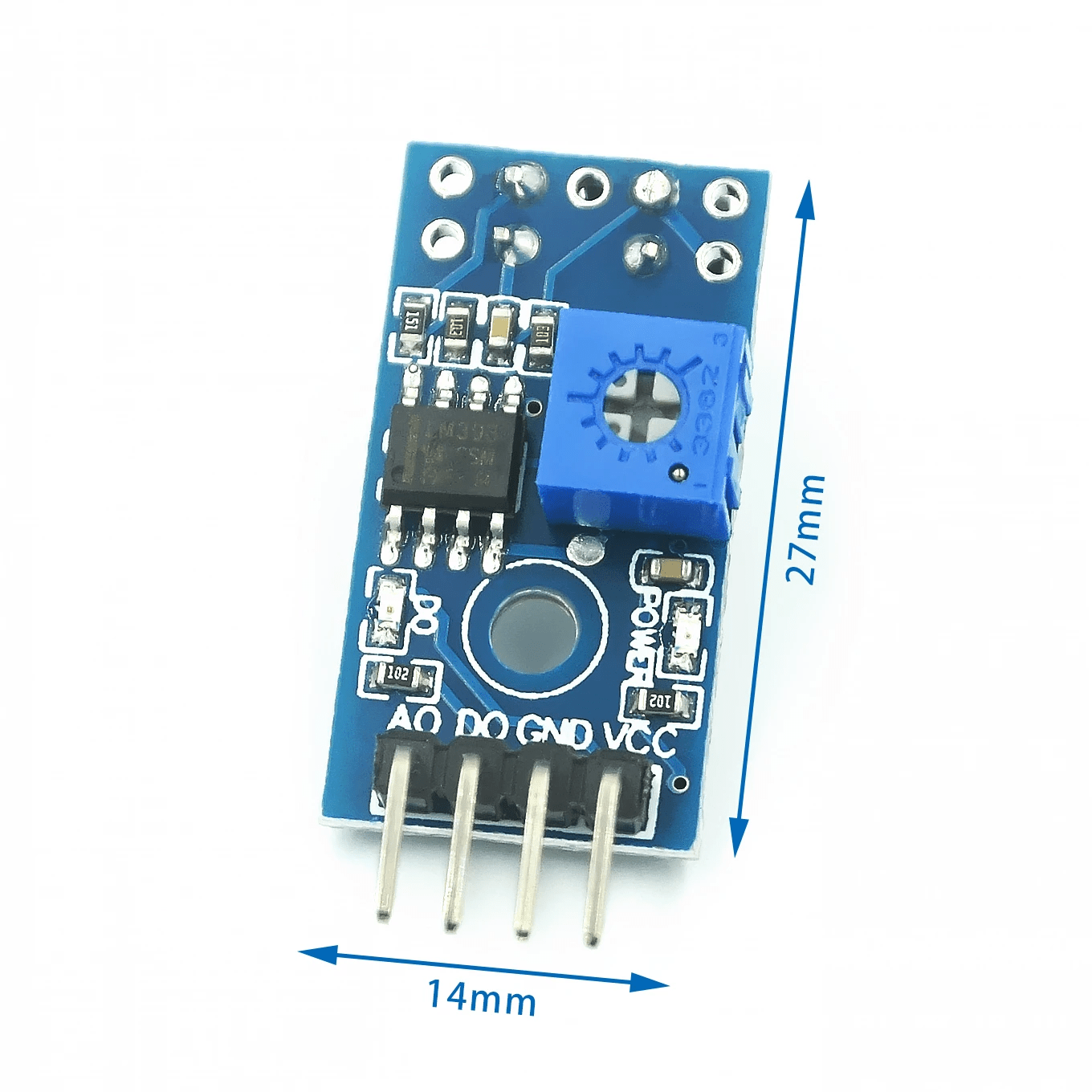

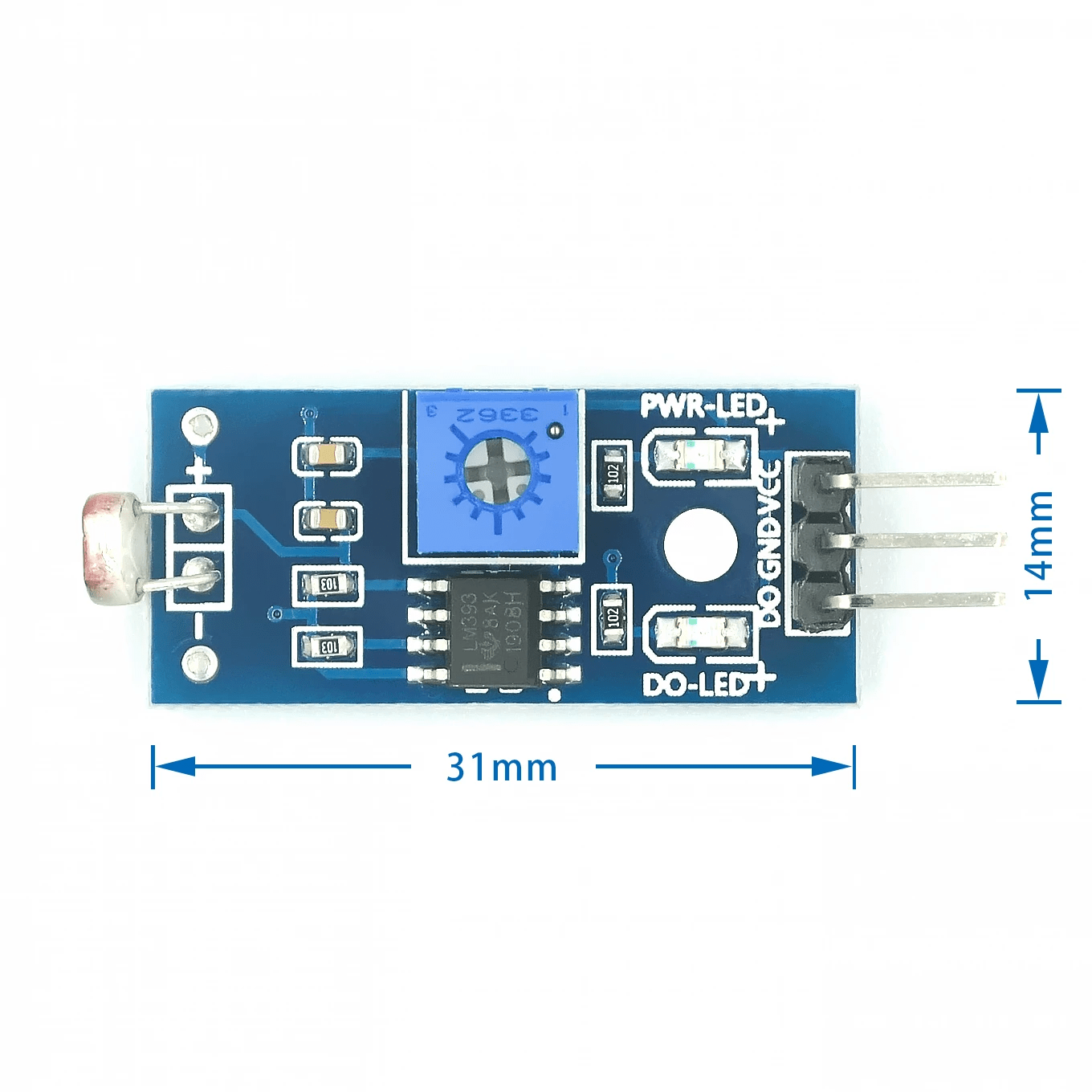

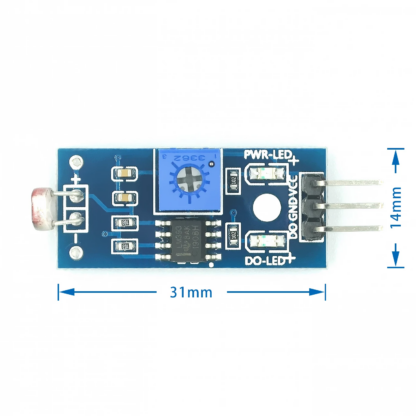

5 Small PCB size:3.2CM*1.7CM;
6 The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 ma;
7 With adjustable potentiometer to adjust light brightness;

Package Included
1 Pcs Photosensitive Resistance Sensor Module 4-Pin

Video med vejledning

Optical Sensitive Resistance Light Detection Photosensitive Sensor Module for arduino 4pin DIY Kit 5

Yderligere information

Vægt 0.01 kg
