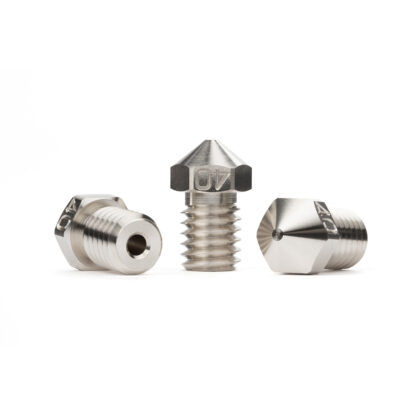

Bondtech Coated Nozzle V6, Mosquito & E3D hotends M6x1x7.5x12.5 1.75mm

Beskrivelse

Bondtech Coated Nozzle V6, Mosquito & E3D hotends M6×1×7.5×12.5 1.75mm

This nozzle is manufactured by Bondtech in-house,
and will fit the following hotends/blocks:

Mosquito and Mosquito Magnum
Copperhead
E3D V4, V5 and V6 blocks
E3D Chimera and Kraken
RepRap M6

Main Advantages

Affordable price
Machined with ultra-precision
Brass nozzle with Nickel coated surface

Advantages of the Nickel Coating

A Nickel coating is applied to our Coated Brass nozzles to provide protection against corrosion, erosion, and abrasion. Nickel coated nozzles have more corrosion resistance and lower coefficient of friction, which allows slicker feeding of material and delays plastic adhesion to the nozzle’s surface.

Bondtech Coated Nozzle V6, Mosquito & E3D hotends Recommended Materials

Use this nozzle with the following materials:

PLA
ABS
HIPS
PC
TPU
TPE
Nylon
PETG
ASA
PP
PVA

For technical and abrasive materials we recommend to use other nozzles in our range.

Different nozzle sets for different materials

We recommend you to have several sets of nozzles because:
Using different materials with the same nozzles causes deposit build-up inside the nozzle.
These deposits will cause blockages.
We recommend changing nozzles when changing materials.

Explaining the Bondtech Nozzles reference standard : MA¹×A²×B×C D E

MA¹xA² refers to the nozzle threading :
MA¹ thread with A² mm pitch.

B >> refers to the nozzle neck length :
B mm long.

C refers to the nozzle overall length :
C mm long.

D refers to the filament diameter:
1.75 or 2.85 mm

E refers to the nozzle diameter:
15,25, 40, 60, 80 … mm/100
