Beskrivelse

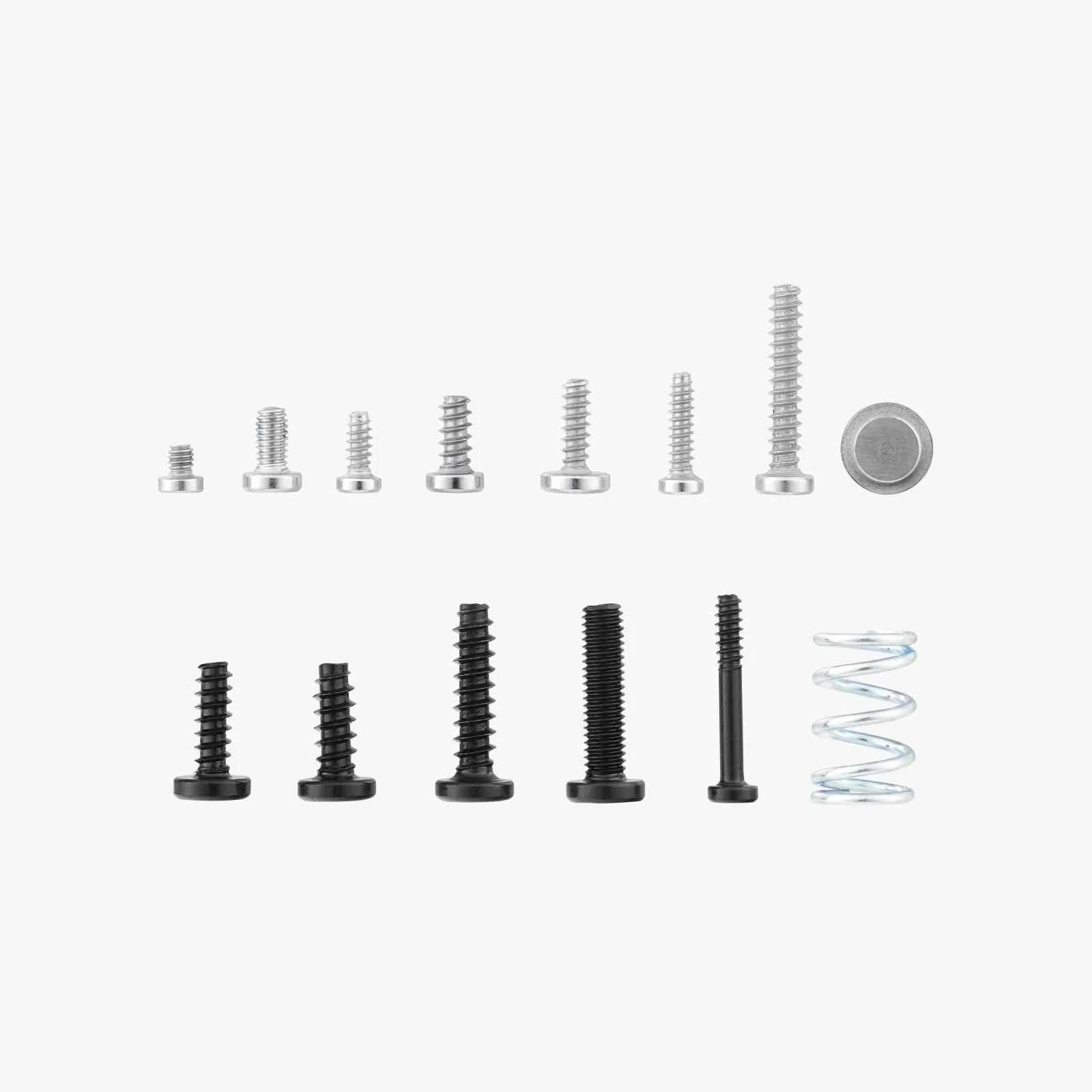

Bambu Lab skrue kit A1 Series and AMS lite
Skruersættet til A1-serien og AMS lite indeholder de mest almindeligt anvendte skruer baseret på brugerfeedback.
For mere detaljeret information og billedvejledning, besøg venligst Bambu Lab Wiki.

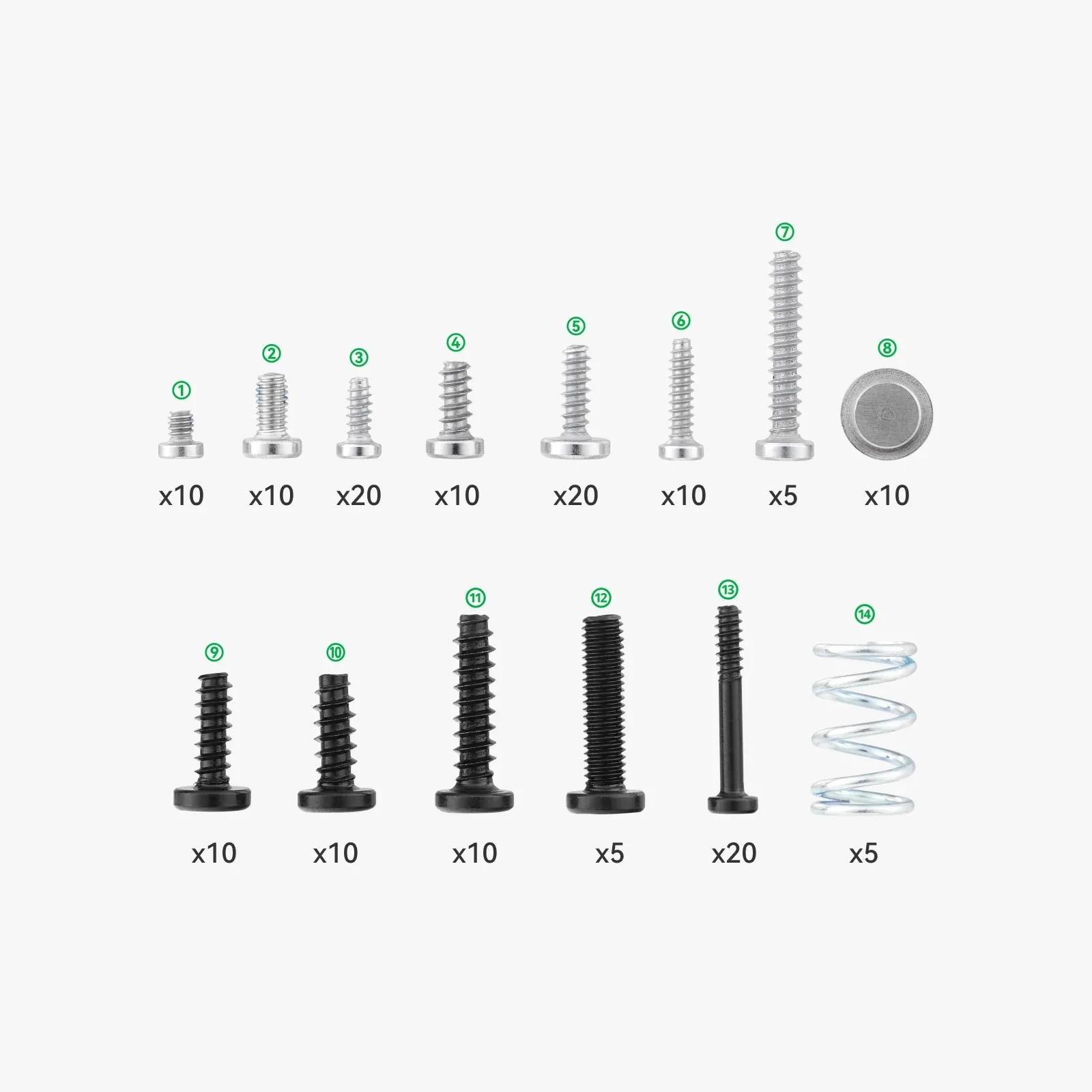

| Item Number | Item Name | QTY | Location |
| 1 | M2x2.5 FHCS (Machine Screw) | 10 | Coil and the Heat Sink of A1 Main Board |
| 2 | M2.5×5 FHCS (Machine Screw) | 10 | A1 mini Heatbed |
| 3 | BT2x5 SHCS (Self Tapping Screw) | 20 | Feeder unit and the Filament Sensor |
| 4 | BT2.6×5 SHCS (Self Tapping Screw) | 10 | Filament Sensor Base |
| 5 | BT2.3×7 SHCS (Self Tapping Screw) | 20 | Extruder Unit and its front cover |
| 6 | BT2x8 SHCS (Self Tapping Screw) | 10 | Filament Pressing Block |
| 7 | BT2.6×14 SHCS (Self Tapping Screw) | 5 | Cutter Lever |
| 8 | Stainless Steel Flat Washer | 10 | Extruder Gear Assembly |
| 9 | BT2.6×8 SHCS (Self Tapping Screw) | 10 | Scraper |
| 10 | BT3x8 SHCS (Self Tapping Screw) | 10 | Bottom Plate of A1& A1 mini |
| 11 | BT3x12 SHCS (Self Tapping Screw) | 10 | Extruder Unit |
| 12 | M3x12 FHCS (Machine Screw) | 5 | Purge Unit and the A1 mini Z Cover |
| 13 | BT2x13 SHCS (Self Tapping Screw) | 20 | Filament Funnel Unit |
| 14 | 0.9×11 mm Helical Compression Spring | 5 | Extruder Gear Assembly |
