Beskrivelse
Micro Swiss Direct Drive Extruder is configured for Linear Rail System
- No modification required, simple plug and play
- No printed brackets or sandwiches
Features:
- Dual-drive train
- Hardened tool steel, CNC precision cut gears
- Adjustable filament grip
- Easy filament loading
- Short, highly constrained filament path
- Prints flexible filaments with high speed and accuracy
- Outstanding extrusion control
- Lightweight aluminum body
Passer til:
- Printers with MGN12 Linear Rail with MGN12H Carriage Block
- Only for printers with bottom belt mounting position

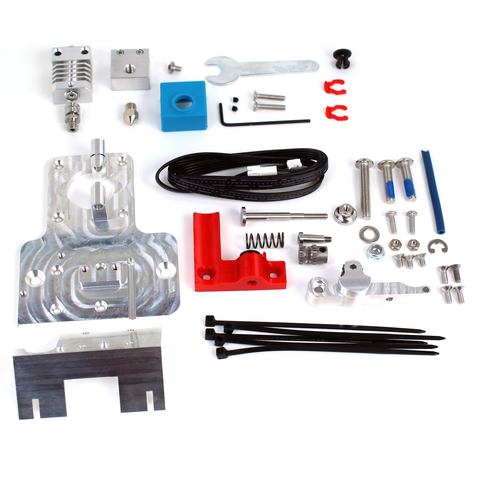

Pakken indeholder:
- Stepper motor, Linear Rail and Carriage Block are NOT included
- 1x Micro Swiss All Metal Hotend
- 1x Main Extruder body
- 1x Linear Rail mounting bracket
- 1x Extruder Lever
- 1x Spring Pin
- 1x Spring
- 2x Gears
- 1x Tension Knob
- 1x Shoulder Pin
- 1x Extension Cable
- 3x M3 x .5 x 6mm Motor Mounting Screws
- 4x M3 x .5 x 8mm Linear Rail bracket mounting screws
- 2x M3 x .5 x 10mm Screws
- 2x M3 x .5 Nuts
- 5x Zip Ties
- 1x Printed Bracket
- 1x Beveled Capricorn Liner
